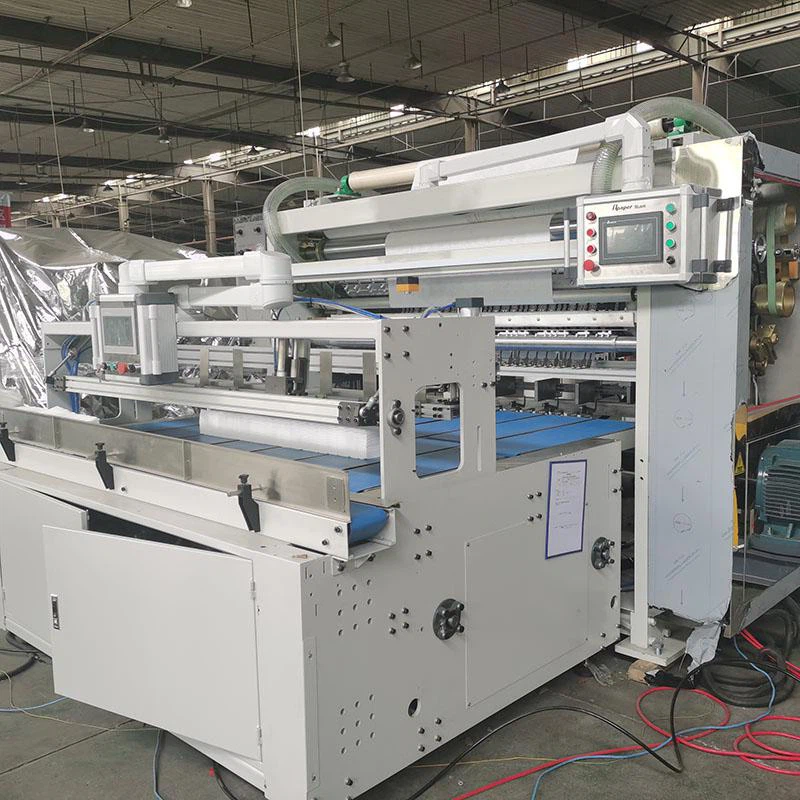

Napkin Tissue Folding Machinery Also Named Facial Tissue Folding Machine in Different Erea

Zhejiang Onepaper Smart Equipment Co., Ltd.

Official wesite: https://onepapergroup.com

Whatsapp/WeChat: +86-18815151008

Napkin tissue folding machinery is a machine that can fold napkins into tissue paper elegantly. If you are looking for a machine that can fold napkins, tissues, and other smaller paper items into tissue paper, then a folding machine is the best option for you.

Although there are many machines that fold these items, the napkin tissue folding machine is one of the most efficient and reliable options. The napkins or tissues are placed into the machine and then the machine folds them into paper.

The machine is capable of folding up to 100 napkins in a minute. This machine is lightweight, portable, and easy to use. This machine is also capable of folding up to 100 tissues in a minute.

Machine Features:

Facial tissue making machine working flow: The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and then interfolded into inter overlapped rectangular facial tissue sheets.

This machine adopts an independent servo motor drive, and automatic paper tension control automatic marking functings. It featurse of high speed, nice folding and easy operation.

1. Can order steel to rubber embossing rolls, pneumatically separated.

2. Wallboard rack and Machine running stability and extremely good and fast.

3. Pneumatic jumbo roll loading, pneumatic paper driving, stepless speed additionstment, and web tension control.

4. Equipped with roots type vacuum pump for stable running of the machine.

5. Make various products width as requirement.

6. Equipped with edge embossing unit to keep the plise together.

7. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.

8. The web can be threaded on the machine by the two jog buttons, It's more safer and easier to thread the web.

Specification of Facial Tissue Folding Machine:

Machine Model: CS-190/6L (Other size to be specified)
Finished Products Unfolded Size: 95x(120-210)x2mm
Folding Products Size: 190x(120-210)x2mm
Raw Material Width: 1260mm
Raw Material Diameter: 1200mm
Raw Material Core Diameter: 76.2mm
Output Capacity (8 hours): 2000-3000kg
Embossing Unit: Steel to rubber
Edge Embossing: Steel to steel edge embossing, independent pneumatic regulation
Slitting Unit: Pneumatic slitting
Main Servo Moter Power: 5.5kw
Unwind Frequency Motor Power: 1.5kw (2 units)
Vacuum System: 18.5 kw Vacuum pump (Taiwan Roots blower)
Pneumatic System: 3HP air compressor,Min. pressure 5kg/cm2PA (Provider by user themselves)
Driving System: Timing belt
Dimension: 5870x2800x2207mm
Weight: About 5 tons
