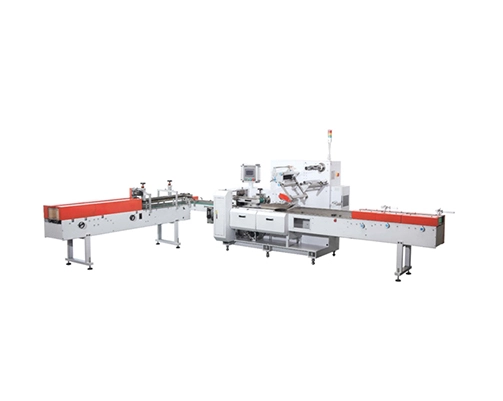

Automatic Multi Rolls Toilet Paper Bundling Packing Machine uses PLC and servo motor as the control and drive unit to realize the automatic process of product counting, bag taking, bag opening, bag entering and sealing. The operating parameters can be set on the touch screen, making operation easy. Faults are automatically displayed for easy tracking and maintenance. Bag presence and product monitoring to prevent bagless or product-less operations. Prefabricated bag packaging, double bag warehouse hanging bags, one for backup and one for use, and the machine does not stop when loading bags. The sealing mold adopts negative pressure molding to ensure the bending angle deviation and sealing quality.
Equipment Model | OPTP-R200M | |
Packaging Speed (packs/minute) | 20-220 | |
Maximum Production Speed (packs/minute) | 200 (dependent on specifications) | |
Maximum Width of Packaging Film (millimeters) | 430 | |
Paper Size | 80-220 | 80-220 |
80-130 | 80-130 | |
Total Power | 12 kW | |
Motor Power | 3.2 kW | |
Cutter Configuration | Double-blade | |
Film Supporting Configuration | Double film holder | |
Net Weight of Equipment | 1800KG | |
Equipment Noise (decibels) | ≤78DB | |
Production Qualification Rate | ≥97% | |
Equipment Dimensions (Length*Width*Height) (mm) | 5500×3300×1600 | |
Power Supply Type | 220V 50HZ | |
Packaging Film Material | SPP、CPP | |
Packaging Film Thickness (mm) | 0.018-0.03 | |
The OPTP-R220M type single roll toilet paper fully automatic packaging machine is suitable for the fully automatic packaging of single-core roll toilet paper, single-roll coreless toilet paper, and single-roll kitchen paper towels.
Paper towel feeding, film feeding, longitudinal sealing, cutting, coreless paper exhaust, and other operating actions are all controlled by servo drive control mode, which has the advantages of complete operating function configuration, high efficiency, simple operation, wide adaptability of specifications, rapid specification conversion, easy maintenance, and low cost of use.
The stable production speed of packaging core roll toilet paper can reach up to 200 pieces per minute.
The stable production speed of packaging coreless roll toilet paper can reach up to 150 pieces per minute.
Only electronic setting is required to freely switch the packaging specifications between paper towel lengths of 80mm to 210mm.
