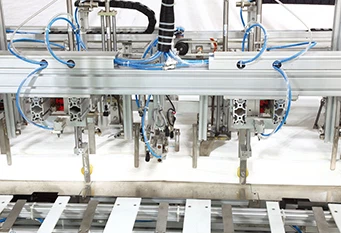

Restaurant Napkin Folding Machine For Restaurant Napkin Factory To Produce The Napkin

Restaurant napkin folding machine for restaurant napkin factory to produce the napkin

Zhejiang Onepaper Smart Equipment Co., Ltd.

Official wesite: https://onepapergroup.com

Whatsapp/WeChat: +86-18815151008



restaurant napkin folding machine is a new product that is making its way into the restaurant napkin industry. This machine is made to be able to fold the napkins in the machine. The machine is set up to fold the napkins automatically, and it is an easy to use machine. This machine is made to be able to operate at high speeds so that the company can meet their production demands.


Testaurant Napkin Folding Machine For Restaurant Napkin Factory To Produce The Napkin


Machine Features:

Facial tissue making machine working flow: The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and then interfolded into inter overlapped rectangular facial tissue sheets.

This machine adopts independent servo motor drive and automatic paper tension control automatic marking functions. It featurse of high speed, nice folding and easy operation.


1. Can order steel to rubber embossing rolls, pneumatically separated.

2. Wallboard rack and Machine running stability and extremely good and fast.

3. Pneumatic jumbo roll loading, pneumatic paper driving, stepless speed additionstment, and web tension control.

4. Equipped with roots type vacuum pump for stable running of the machine.

5. Make various products width as requirement.

6. Equipped with edge embossing unit to keep the plise together.

7. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.

8. The web can be threaded on the machine by the two jog buttons, It's more safer and easier to thread the web.


Specification of Facial Tissue Folding Machine:

Machine Model: CS-190/6L (Other size to be specified)

Finished Products Unfolded Size: 95x(120-210)x2mm

Folding Products Size: 190x(120-210)x2mm

Raw Material Width: 1260mm

Raw Material Diameter: 1200mm

Raw Material Core Diameter: 76.2mm

Output Capacity (8 hours): 2000-3000kg

Embossing Unit: Steel to rubber

Edge Embossing: Steel to steel edge embossing, independent pneumatic regulation

Slitting Unit: Pneumatic slitting

Main Servo Moter Power: 5.5kw

Unwind Frequency Motor Power: 1.5kw (2 units)

Vacuum System: 18.5 kw Vacuum pump (Taiwan Roots blower)

Pneumatic System: 3HP air compressor,Min. pressure 5kg/cm2PA (Provider by user themselves)

Driving System: Timing belt

Dimension: 5870x2800x2207mm

Weight: About 5 tons
