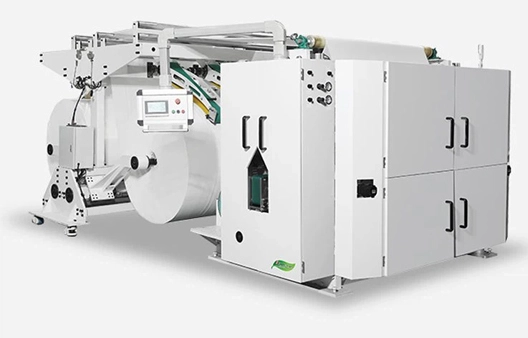

F1 Series High speed folding machine,Made in zhejiang onepaper,china.
Suitable for automatic folding and extraction of box tissue paper, soft tissue paper and cotton towel.It is a simple and easy operation to transfer rolled paper to complete the steps of rewinding, blanking, embossing (optional), folding, separating (optional) and so on.
Item/model | F1 Series |
Folded form | V-fold |
Standing roll | 2 standard, can be added according to customer requirements |
Max. diameter of jumbo roll | 1500mm |
Inner diameter of jumbo roll core | 3 inches (≈Φ76mm) |
Jumbo roll basis weight | 12-16 g/m2 (2 layers), 18-22 g/m2 (1 layer) wood pulp paper, 35-80 square meters of non-woven fabric (1 layer) |
Folded size | 175-210m Customized within the scope according to customer requirements |
Folding speed | ≤120 m/min |
Fan power | This power is the data of 6-line machine) |
Total power | This power is the data of 6-line machine) |
Power supply type | Three-phase four-wire 380V 50Hz |
Machine noise | ≤80dB |
Air supply | 0.5-0.8 MPa |
Air consumption | 120-160L/min |
From the feedback from customers at home and abroad, we have a common answer: the cost-effective ratio is high, at the same time we pay great attention to the brand development. In the process of product generation, the layers of processes are strictly controlled. Even a small part, we will carefully check, and will never let any defective products attach to our machine, causing bad experience for customer.
This High speed folding machine uses servo-tracked rewinding to effectively control tension, so that the folding effect is better and the size is more accurate. Simple appearance and color matching not only make the machine visually refreshing, but also make the operation simple.
