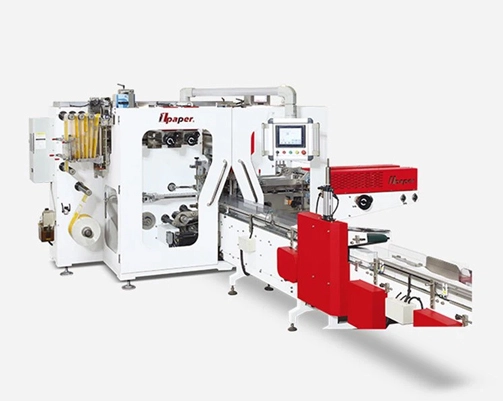

This high speed packaging machine is a device that integrates the steps of easy tearing, film dipping, feeding, packaging, end sealing, corner folding, side sealing, and discharging. Its stable structure has the advantages of durability, and the packaging effect is high in aesthetics and strong in sealing. In addition, the machine is equipped with a full-server motor and motion control system, which is fast and can effectively improve the processing efficiency; its 10" touch screen interface is clearly displayed, which greatly improves the automation and intelligence of processing, and also makes the operation more convenient.
High speed packaging machine adopts the new technology of 14-axis servo motion control + remote Internet of Things independently developed by our company, which allows our engineers to remotely check the problems and alarm positions of the machine for customers, and the positioning accuracy is very high.
Item/model | OPR-128S | OPR-150S | |
packing form | Three-dimensional | ||
packing material | CPP, PE, BOPP CPP FILM, PE film, BOPP | ||
packing specification | L:90-180mm，w:80-110mm，H:20-80mm | ||
maximum packing dimensions | L180×W110×H80mm | ||
packing speed | ≤128(bags/minute) | ≤150(bags/minute) | |
heating power | 6.5KW | ||
motor power | 16.00KW | ||
total power | 22.5KW | ||
power supply type | Three-phase four-wire 380V 50Hz | ||
air supply | 0.5-0.8 MPa | ||
air consumption | 200-260L/min | ||
Outline dimensions | main machine | L4050×W1400×H1915mm | |
conveying mechanism | L3850×W750×H1420mm | ||
machine weight | ≈About 3500Kg | ||
Efficiency and Speed: The OPR-228S boasts exceptional packing speeds, capable of wrapping up to 200 packs per minute, significantly enhancing production throughput.
Versatility: Designed to accommodate a wide range of tissue paper sizes and pack configurations, the OPR-228S offers flexibility for various packaging needs.
Advanced Control System: Equipped with a sophisticated control system, the machine ensures precise operation, consistent quality, and easy adjustment settings, optimizing the packing process.
