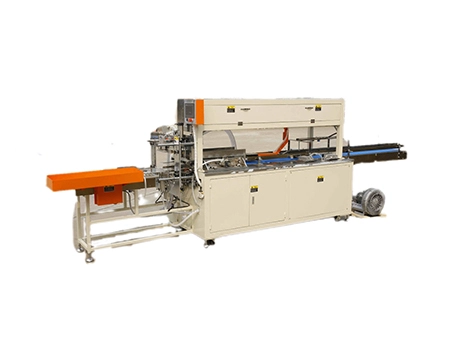

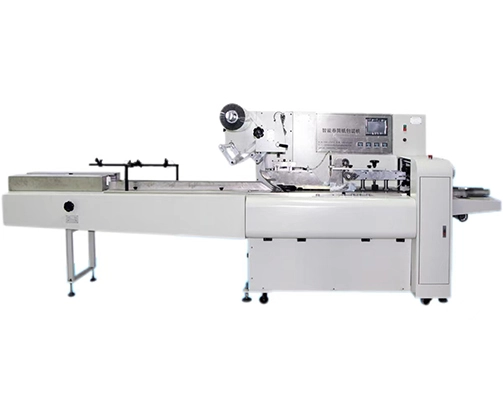

Automatic Single Roll Toilet Paper Packing Machine is mainly used for packaging independent small rolls of toilet paper rolls, replacing the traditional manual film and sealing one by one. It has the advantages of fast speed, neat and beautiful packaging, and saving manpower.
Items | Unit | norm | |
Total length of the whole machine as standard | 11.58 m | ||
Main unit external dimensions X1 | Length | mm | 3368mm |
Width | mm | 1050mm | |
Height | mm | 1500mm | |
Side ironing external dimensions X1 [Side Exit Standard] | Length | mm | 3200mm |
Width | mm | 2168mm | |
Height | mm | 1350mm | |
Conveyor Belt External Dimensions X2 | Length | mm | 3000mm |
Width | mm | 450mm | |
Height | mm | 1080mm | |
Weight | Kg | 1380kg | |
Stabilized packing speed | Grain/minute | 60-200 Maximum speed 220 grains | |
Packaging range | Length | mm | 90-160mm |
Calibre | mm | 90-120mm | |
Packaging material specific data | Packaging film material: SPP double heat sealing film; Packaging film thickness: 0.018mm~0.025 mm; Packaging film maximum outer diameter: ￠450mm; Diameter of wrapped rolled paper tube: 70mm -75mm The margin of center sealing is not less than 20mm, and the sealing method is the sealing method of food pillow packing machine wheel clamp. | ||
Full load power of the whole machine is about 8.2Kw Mainly contains: Servo motor 1.0KWx1 0.75KWx1 0.4KWx3 AC motor 0.37KWx3 0.55KWx1 Heat generating part: vertical seal 0.4KWx4 horizontal seal 0.5KWx4 Side hot heating section: 2.4KWx2 | |||
Electrical Configuration: | servo motor Domestic [Shenzhen Xingpu XDQ1 series] | 1.0KW | |
0.75KW | |||
0.4KW | |||
PLC | DELTA EH3 | ||
touchscreens | Shenzhen U-Control | ||
Photoelectric sensors | Panasonic CX442 | ||
proximity switch | Shanghai Yingbang-PR1204N | ||
Pneumatic configuration | solenoids | AirTAC | |
cylinder | XINGCHEN | ||
filter | XINGCHEN | ||
Trachea, Insert | TWSNS | ||
Date Coding Machine [Optional, pre-drilled mounting holes] | None | ink wheel coder | |
Noise | decibel | Less than 75db | |
Power supply | 220V X3/50HZ [Wiring requirement 5 cores X 4 sq. ft. = 3 phases 4 wires + ground] | ||
Compact Design: Optimized for space efficiency, this machine features a compact design that allows for easy installation in limited spaces, making it ideal for facilities with space constraints.
Quick Changeover: Engineered for flexibility, it supports quick changeovers between different packaging materials and sizes, reducing downtime and enhancing operational efficiency.
Reliable Sealing Mechanism: Incorporates a reliable sealing mechanism that ensures each toilet paper roll is securely wrapped, providing a moisture-proof and dust-free packaging to extend shelf life and improve consumer satisfaction.
