This toilet paper roll packing machine adopts new technology independently developed by the company and has 10-axis servo motion control. It can complete a series of operations such as bottom sealing and batch number (optional) in one process, which is convenient and fast and saves more labor costs. The suspended design makes the machine easy to clean and maintain, and the specifications can be switched with one key, which effectively shortens the movement circumference, thereby improving speed and efficiency. The machine has a high degree of automation and intelligence, and the man-machine interface display is convenient and quick to operate, and it can perform inflatable feeding and automatic correction of batch numbers. Suitable for automatic bagging of cotton towels, wet wipes, sanitary napkins/cushions, etc.

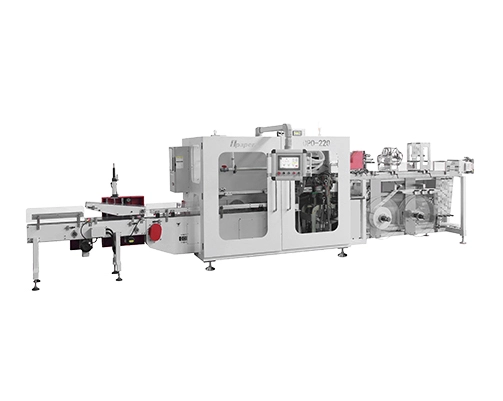

Item/model | OPO-220M | |
Packaging form | Bagging and sealing packaging | |
Packing material | CPP film, PE film, BOPP film | |
Packing specification | L:80-220mm, W:80-120mm, H:40-100mm | |
Packing speed | ≤70 bags/minute | |
Heating power | 3.5KW | |
Motor power | 9.5KW | |
Total power | 13KW | |
Power supply type | Three-phase four-wire 380V 50Hz | |
Machine noise | ≤80dB | |
Air supply | 0.5-0.8 MPa | |
Air consumption | 200-260L/min | |
Outline dimensions | Main machine | L5400×W1400×H1850mm |
Conveying mechanism | L1330×W450×H1440mm | |
machine weight | ≈3300Kg | |
Precision Wrapping: Utilizes advanced technology to achieve precision wrapping, ensuring that each paper towel pack is consistently and neatly packaged, enhancing product presentation.

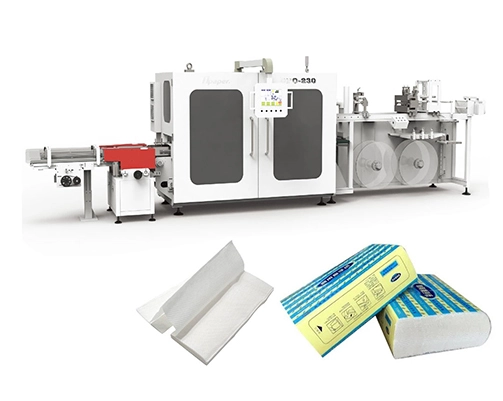

High-Speed Packaging: The paper towel making machine OPO-230 is designed for high-speed packaging operations, capable of handling numerous paper towel units per minute, streamlining production lines for maximum efficiency.
Automated Detection System: Features an automated detection system that identifies and rejects defective products, ensuring only items meeting quality standards are packaged, thereby reducing waste and improving overall product quality.
